Original LOXONE components via the IQ-Home webshop – with advice from your authorized partner.
All prices in EUR gross (incl. 20% VAT).
Source: LOXONEExtensions
The LOXONE Air Base Extension is used to extend the Miniserver, and enables the integration of numerous devices that are equipped with LOXONE Air radio technology. Features: Connection with up to 128 Air devices SMA socket with 1.8 dBi rod antenna Encrypted communication Mesh te…
Source: LOXONEExtensions
The LOXONE Relay Extension provides 14 outputs with potential-free relays . Together with the Miniserver, you get the perfect solution for controlling shading, lighting, heating, alarm systems and much more.
Source: LOXONEExtensions
The LOXONE 1-wire Extension enables the integration of 1-wire sensors such as temperature sensors or i-Buttons. Features: For up to 20 sensors or 1 iButton reader For an unlimited number of iButton
Source: LOXONEExtensions

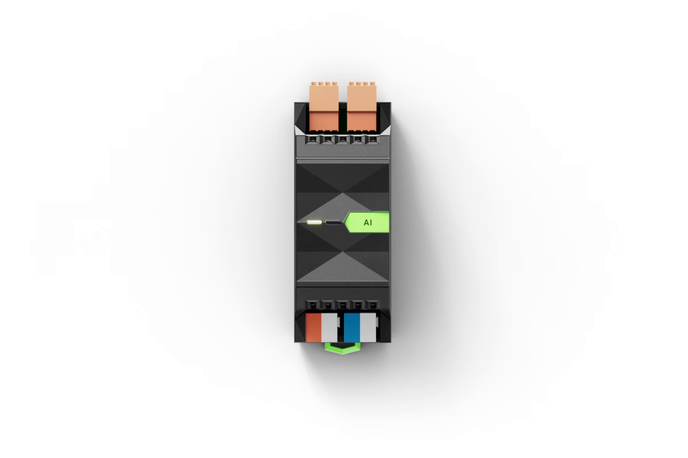

The LOXONE AI Extension has 4 inputs for analogue voltage signals such as 0-10V or digital, as well as 4 analogue inputs for current signals such as 0/4-20mA. Features: Specially developed for use in industrial projects 4x voltage signals (differential): Resolution: 0.02V When u…
Source: LOXONEExtensions
The LOXONE AO Extension provides 4 analog 0-10V outputs. Perfect for transmitting analog control signals in the 0-10V range. This can be used to control heaters, electronic ballasts, pumps and much more. Features: Instantaneous output: max. 20mA Continuous output: max. 10mA Reso…
Source: LOXONEExtensions

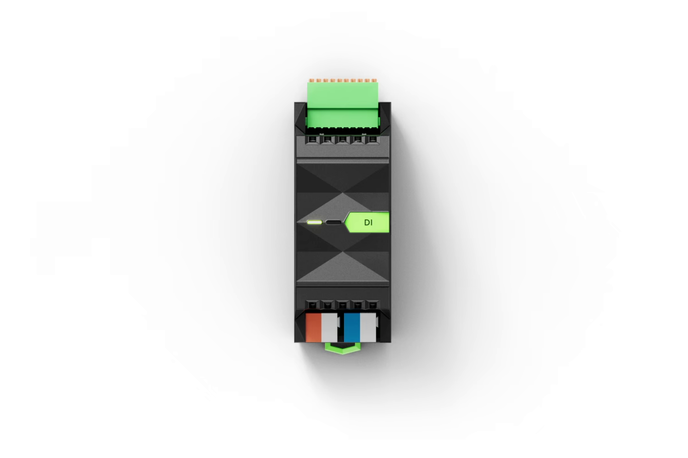

The LOXONE DI Extension provides 20 digital inputs. Features: Perfect for switches, buttons or other sensors Can also be used as a frequency counter for signals up to 250Hz Space-saving
Source: LOXONEExtensions

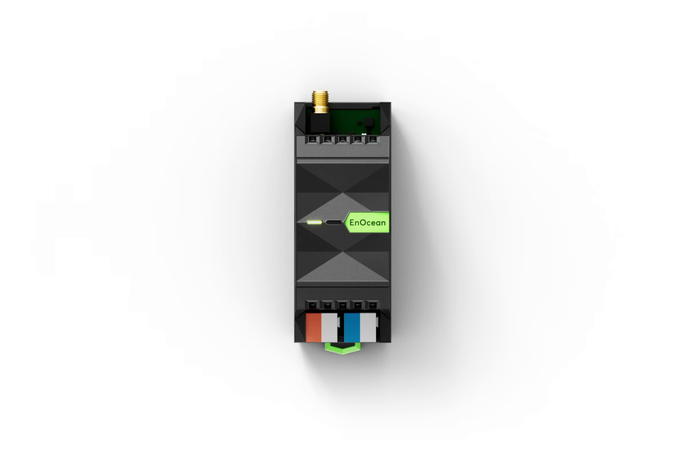

The LOXONE EnOcean Extension enables the integration of devices with EnOcean radio interface. Features: Connection with up to 128 EnOcean devices Frequency: 868MHz Perfect for retrofit projects
Source: LOXONEExtensions

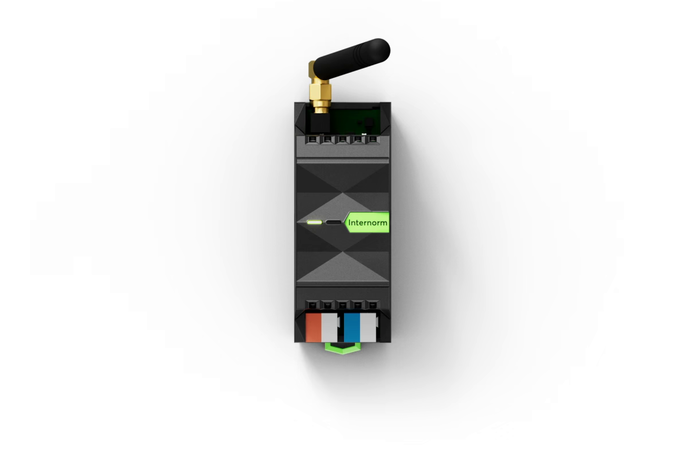

The LOXONE Internorm Extension enables the integration of I-tec devices from the manufacturer Internorm that support the I-tec 1.0 radio protocol. Features: Full integration of Internorm I-tec ventilation to implement intelligent living space ventilation Full integration of I-te…
Source: LOXONEExtensions
The LOXONE KNX Extension enables the integration of devices with a KNX interface. Features: For the integration of up to 500 KNX group addresses Sends and receives group addresses of different data types Cable length up to KNX power supply: max. 350m Cable length up to first KNX…
Source: LOXONEExtensions
The LOXONE M-Bus Extension is an M-Bus-Master for DIN rail mounting for reading up to 30 M-Bus devices such as gas, water or energy meters. The read values can be used for energy management, consumption data recording and much more. Features: Up to 30 M-Bus devices Up to 100m bu…
Source: LOXONEExtensions
The LOXONE Modbus Extension enables the integration of devices with a Modbus RTU interface, such as gas, electricity, water or energy meters. This records consumption data for intelligent energy management. Features: Max. 32 devices, max. 253 sensors in total Adjustable baud rat…
Source: LOXONEExtensions
Die LOXONE Multi Extension Air stellt 8 Ausgänge mit potentialfreien bistabilen Relais, 12 digitale Eingänge, eine 1-Wire Schnittstelle und 4 PWM Ausgänge zur Verfügung. Features: Überall platzierbar und somit die vielseitigste Extension für Nachrüstprojekte 12 digitale Eingänge…
Source: LOXONEExtensions

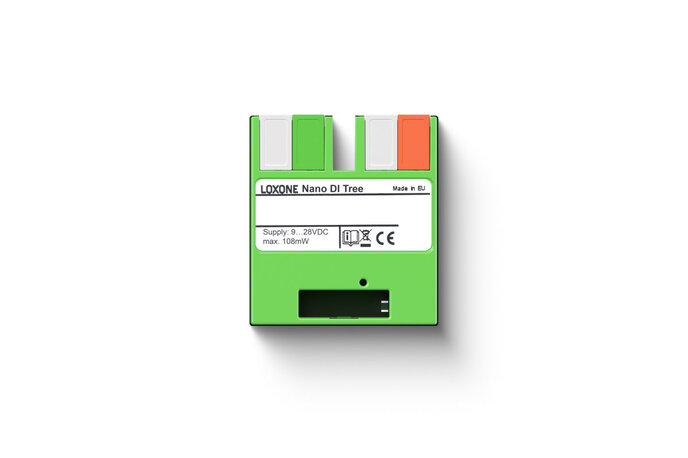

The LOXONE Nano DI Tree provides 6 digital inputs in a compact module. It is ideal for quickly and easily integrating any switches, buttons, window contacts and much more using the LOXONE Tree technology. Features: Fits in any standard installation box 6 digital inputs: Each dig…
Source: LOXONEExtensions
The LOXONE RS232 Extension enables the integration of devices with RS232 interface, such as music systems, telephone systems, heating controls and many more. Features: For integration of RS232 devices Adjustable baud rate & parity
Source: LOXONEExtensions
The LOXONE RS485 Extension enables the integration of devices with an RS485 interface, such as air conditioning systems, ventilation systems, fingerprint systems and many more. Features: For integration of max. 32 devices Max. 1200m cable length Adjustable baud rate and parity
Source: LOXONEExtensions

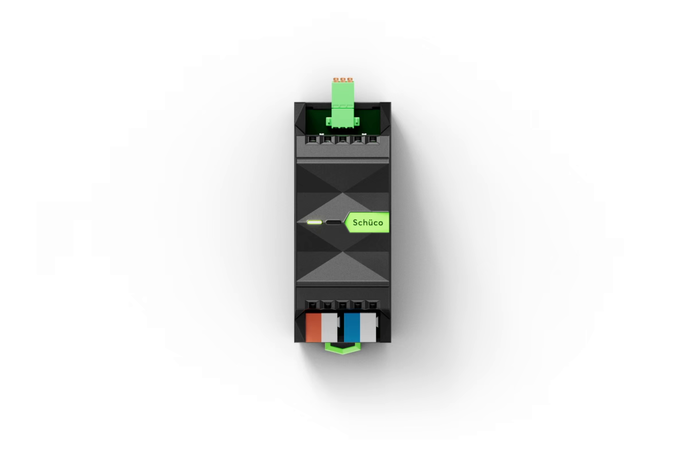

The LOXONE Schüco Extension enables the integration of devices with the Schüco element bus. Features: For the integration of max. 30 devices Full integration of Schüco TipTronic SimplySmart windows and sliding doors into the intelligent building
Source: LOXONEExtensions

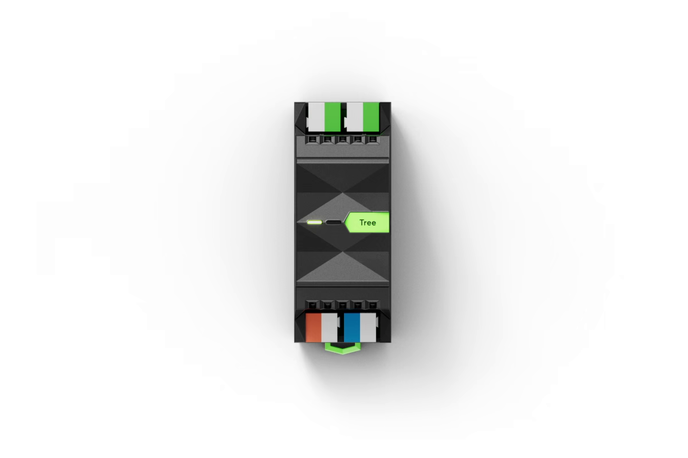

The LOXONE Tree Extension is used to extend the Miniserver and enables the integration of numerous devices that are equipped with the LOXONE Tree technology. \n Features: \n\nTwo Tree connections for up to 50 devices per branch \nUp to 80% less cabling effort \nLine, star and tr…
Source: LOXONEExtensions

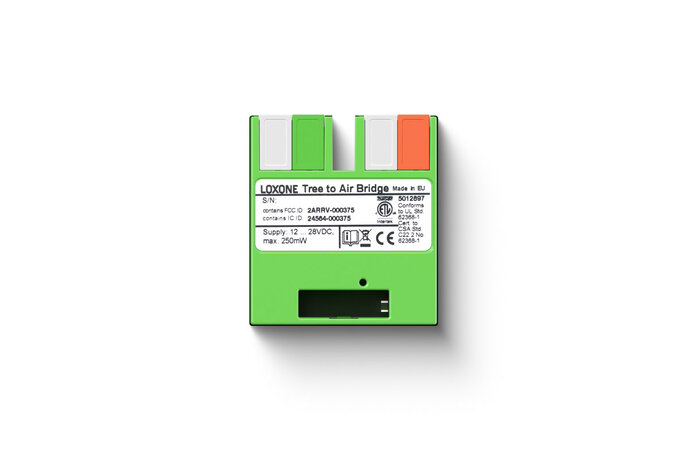

The LOXONE Tree to Air Bridge enables the integration of numerous devices that are equipped with the LOXONE Air radio technology, or as an extension of the radio coverage of LOXONE Air. The connection is made via the Tree interface. \n Features: \n\nDecentralized installation, f…
Source: LOXONE
